CICS TS - Usage

Setting up resources for simple management of properties

Before you begin, ensure the following:

About this task

You can use Resources in UrbanCode Deploy to reduce the manual configuration needed in each of your deployment processes. Resources contain properties that you can use within the steps of your processes. The properties defined within a given resource are inherited by their descendants.

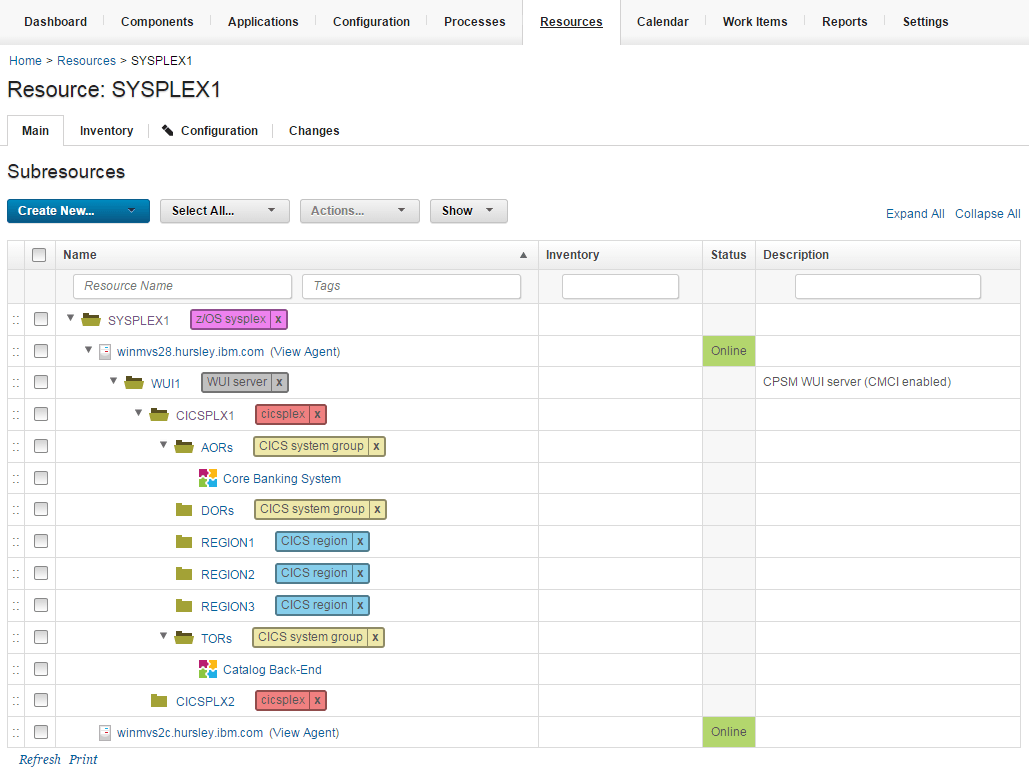

The following diagram represents a suggested CICS resource tree, which shows a sysplex with two agents running on different logical partitions. One of these logical partitions contains two CICSplexes managed by a single WUI Server. One of the CICSplexes contains a number of CICS regions and system groups.The Core Banking System component is assigned to the AOR system group, and the Catalog Back-End component is assigned to the TORs system group. Properties that are defined for a higher-level resource (for example, a sysplex) are inherited by the contained components and resources (for example, several CICSplexes).

Diagram showing a possible CICS resource tree. When you add a new CICS step to a process, the step contains a number of default values that refer to properties. You can view all available default input properties for the CICS TS plugin on the Steps page under the Default input properties topic.

For CICS steps, it may be useful to set up a resource tree as previously described, defining properties at the following resource levels:

Property Resource with tag
cics.host Agent
cics.cmciport WUI
cics.cicsplex CICSplex
cics.scope CICSplex, System Group, or Region
cics.username Sysplex
cics.password Sysplex

For more general information on property inheritance, see Referring to properties.

Before you begin, ensure the following:

Process

  1. The Copy Artifacts step loads the artifacts that make up the z/OS component version. Use the FTP Artifacts step if build and deployment are on two different z/OS systems.
  2. Deploy Data Sets step deploys the component version to z/OS by copying datasets and members to their required location.
  3. The New Copy Resources step then performs a NEWCOPY of a specified program or list of programs.

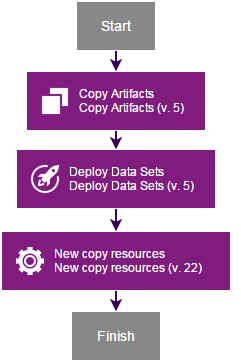

Diagram showing a process with Copy Artifacts,Deploy Data Sets, and New copy resources steps.

Diagram showing a process with Copy Artifacts,Deploy Data Sets, and New copy resources steps

Deploying and undeploying CICS applications

Component and component version for a CICS application

Components represent deployable items and the processes, properties, and other configuration that operate on them. For additional information, see Components in the product documentation.

Create a Component to store your CICS application ready for deployment. The component name should match the CICS application name. For example: com.ibm.cics.minibank.application

A version of the Component is created by your build script. The script typically extracts the Eclipse projects that consist of the source of the CICS application (including the binding, application, and bundles) from your source code management (SCM) system. The script then calls the CICS TS build toolkit to build the application. The build output directories and files are stored in UCD as a new Component Version.

Component process to deploy a CICS application

A CICS application is deployed using Deploy application step.

Define your component process to take the following actions:

  1. Download the artifacts to a temporary location.
  2. Call the CICS build toolkit to resolve variables in the application.
  3. Copy the resolved application to the CICS platform home directory.
  4. Use Deploy application step to define, install, and make the application available in CICS.

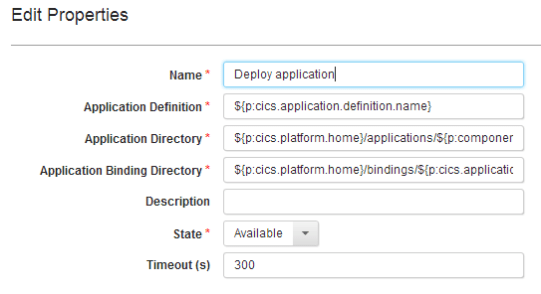

Image showing the default values for the Deploy application step

Image showing the default values for Deploy application step

Component process to undeploy a CICS application

You can undeploy a CICS application by using the Undeploy application step.

Optionally, you can use the component process to remove the application and application binding directories. You should not remove the CICS bundle directories, as it is likely they are shared by several applications, or several versions of the same application.

default values for the Deploy application step

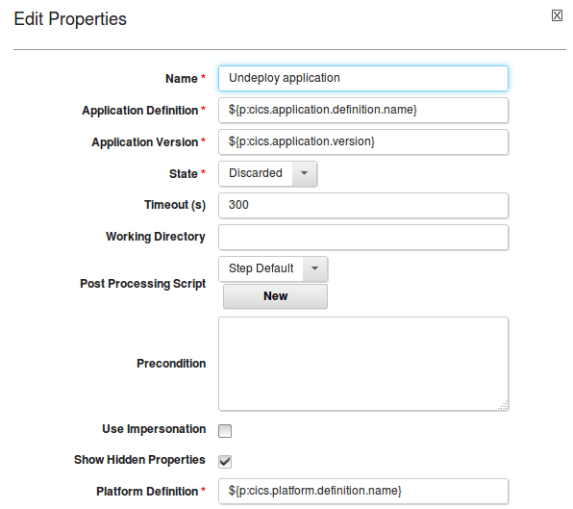

Image showing the default values for theUndeploy application step

Required properties

The following properties are required by Deploy application and Undeploy application steps:

Property Recommended property context Example value
component.name Component com.ibm.cics.minibank
cics.application.definition.name Component minibank
cics.application.binding.directory Component ${p:component.name}.${p:cics.platform.definition.name}.binding_${p:cics.application.binding.version}
cics.application.version Component version 1.0.0
cics.application.binding.version Component version 1.0.0
cics.platform.definition.name Environment prod
cics.platform.home Environment /var/cics/CICSPLX1/prod

Connecting securely with SSL

Overview

You can use SSL to provide additional security when connecting between the UrbanCode Deploy agent on z/OS and CICS. Connecting with SSL is available using client certificates or HTTP basic authentication. Connecting with client certificates stored on z/OS in a security manager such as RACF or zFS has the benefit of avoiding the storage and maintenance of user IDs and passwords on the UrbanCode Deploy server.

Configuring a keystore and truststore

Firstly, in your security manager, configure a key ring and certificate for the CICS regions user ID.

  1. If no CA certificate exists, define a self-signed CA certificate.
  2. Define your userids certificate, signed with a CA certificate.
  3. Define your userids key ring.
  4. Add both the CA and userids certificates to the userids key ring.

Secondly, using the same steps, configure a key ring and certificate for the agents userid. Alternatively, you can use JKS or PKCS12 format keystores for the agent. For example usage, see Configuring SSL in the CICS TS plug-in.

Finally, in order to complete the handshake, connect the CA certificate of the CICS region to the agent users key ring, and the CA certificate of the agent user to the CICS region’s key ring. This can be done using the RACDCERT CONNECT command, with USAGE(CERTAUTH).

For details on using RACF commands, see RACF command syntax in the z/OS product documentation.

Configuring SSL in CICS

  1. If you are using a CICSplex, you must enable CPSM security. To do this, update your CMAS CICSplex EYUPARM file with SEC(YES).
  2. Configure your CMCI TCPIPSERVICE resource with SSL support.
    • Update your WUI SIT parameters with SEC=YES, adding KEYRING=my-keyring if you are using SSL with certificates.
    • For SSL with server and client certificates, update your WUI initialization parameters with the following example configuration:

CMCIAUTH(CERTIFICATE)
CMCISSL(CLIENTAUTH)


CMCIAUTH(BASIC)
CMCISSL(SSL)

For details of available configurations, see Configuring CICS to use SSL in the CICS product documentation.

Configuring SSL in the CICS TS plug-in

Each CICS step has default,hidden properties. In order to use SSL, update the relevant properties with the following values.

Property Value
SSL Set to true.
Keystore Location The location of the keystore that is used to provide credentials for client-certificate authentication. For files in zFS, use a hierarchical file path such as /u/myuser/keystore.jks or file:///u/myuser/keystore.jks.
Keystore Type The type of the keystore that provides credentials for client-certificate authentication. If unspecified, the agents default Java keystore type is used. For keys contained in a key ring managed by a security manager, use JCERACFKS when the keys are stored in software, or JCECCARACFKS when the keys are stored in hardware with ICSF.
Keystore Password The password of the keystore that provides credentials for client-certificate authentication. For keys contained in a key ring managed by a security manager, leave this value empty.
Truststore Location The location of the truststore that verifies credentials. For files in zFS, use a hierarchical file path such as /u/myuser/truststore.jks or file:///u/myuser/truststore.jks
Truststore Type The type of the truststore that verifies credentials. If unspecified, uses the agents default Java keystore type. For certificates contained in a key ring managed by a security manager, use JCERACFKS when the certificates are stored in software, or JCECCARACFKS when the certificates are stored in hardware with ICSF. For more information, see the Hardware Cryptography IBMJCECCA Overview.
Truststore Password The password of the truststore that verifies credentials. For certificates contained in a key ring managed by a security manager, leave this value empty.
safkeyring:///<keyring name>

For java 11 and above:

safkeyringjce:///<keyring name>

.

safkeyringhw:///<keyring name>
