CICS TS - Process Steps

• CICS TS - Steps
  • Process steps in the CICS TS plug-in
    • Check available status of resources
    • Check enable status of resources
    • Check open status of resources
    • Check status of an application
    • Close resources
    • Deploy application
    • Deploy bundle
    • Disable application
    • Disable resources
    • Discard resources
    • Enable application
    • Enable resources
    • Install BAS resource descriptions
    • Install BAS resource groups
    • Install BAS resources
    • Install CSD groups or lists
    • Install CSD resources
    • Make application available
    • Make application unavailable
    • Make resources available
    • Make resources unavailable
    • New copy resources
    • Open resources
    • Phase in resources
    • Scan pipelines
    • Undeploy application
    • Undeploy bundles
    • Output properties
    • Overview of output properties
    • The cics.response.errors output property
    • How to view output properties
    • Use cics.response.errors in a post-processing script

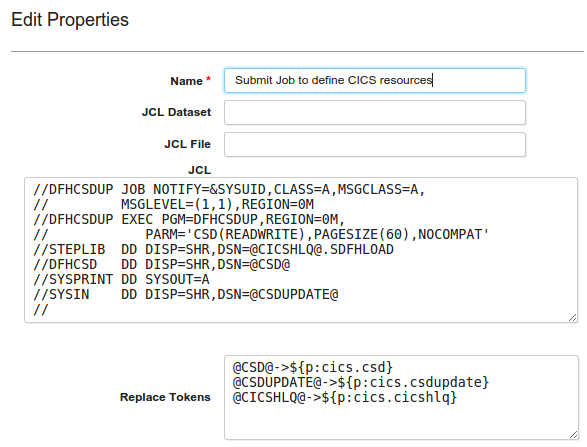

    • Defining and deleting resource definitions
    • Default input properties

Check available status of resources

Check if installed resources are available or unavailable. Requires CICS TS V5.2 or later.

Name	Type	Description	Required
Expected Status	Enumeration:AVAILABLE, UNAVAILABLE	The expecteds tatus.	Yes
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:BUNDLE	The type of resource to check.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 0-1800, where 0 means no retry attempts are made. The default is 15 seconds	No

Check enable status of resources

Check if installed resources are enabled or disabled.

Name	Type	Description	Required
Expected Status	Enumeration:DISABLED, ENABLED	The expected status.	Yes
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMSERV, BUNDLE, CMDT, DB2ENTRY, EPADAPT, EPADSET, EVNTBIND, EXTRATDQ, INTRATDQ, JVMSERV, LIBRARY, LOCFILE, LOCTRAN, PIPELINE, PROCTYP, PROGRAM, URIMAP	The type of resource to check.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 0-1800, where 0 means no retry attempts are made. The default is 15 seconds	No

Check open status of resources

Check if installed resources are open or closed.

Name	Type	Description	Required
Expected Status	Enumeration:CLOSED, OPEN	The expected status.	Yes
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:CMDT, EXTRATDQ, LOCFILE, TCPIPS	The type of resource to check.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 0-1800, where 0 means no retry attempts are made. The default is 15 seconds	No

Check status of an application

Check if an installed cloud enabled CICS application is available, unavailable, enabled, or disabled. Requires CICS TS V5.1 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes
Expected Status	Enumeration:AVAILABLE, DISABLED, ENABLED, UNAVAILABLE	The expected status.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 0-1800. Leave this field blank to not retry.	No

Close resources

Close installed resources.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:CMDT, EXTRATDQ, LOCFILE, TCPIPS	The type of resource to close.	Yes

Deploy application

Deploy a cloud enabled CICS application. Requires CICS TS V5.1 or V5.2 with APAR PI56706, or V5.3 or later.

Name	Type	Description	Required
Application Binding Directory	String	The location of the CICS application binding project on zFS. The default value is ${p:cics.platform.home}/bindings/${p:cics.application.binding.directory}.	Yes
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Directory	String	The location of the CICS application project on zFS. The default value is ${p:cics.platform.home}/applications/${p:component.name}_${p:cics.application.version}.	Yes
Description	String	A description of the application definition. The default value is ${p:component.name}.	No
State	Enumeration:AVAILABLE, DISABLED, ENABLED	The target state of the application.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 1-1800. The default value is 300.	No

Deploy bundle

Deploy a CICS bundle. Requires CICS TS V5.1 or V5.2 with APAR PI56706, or V5.3 or later.

Name	Type	Description	Required
Bundle Directory	String	The location of the CICS bundle on zFS.	Yes
Bundle Name	String	The name of the CICS bundle.	Yes
Description	String	A description of the resource definition.	No
Group Name	String	The name of the resource definition group.	No
Resource Definition	Enumeration:BAS, CSD, NONE	The location in which to create the resource definition. You can also choose not to define the resource.	Yes
State	Enumeration:AVAILABLE, DISABLED, ENABLED	The target state of the bundle.	Yes
Timeout (s)	String	The number of seconds to wait for the bundle to deploy before a timeout occurs. Further processing of the bundle by CICS might occur after the timeout. The valid range is 1-1800. The default value is 300.	No

Disable application

Disable an installed cloud enabled CICS application. Requires CICS TS V5.1 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes

Disable resources

Disable installed resources.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMSERV, BUNDLE, CMDT, DB2ENTRY, EPADAPT, EPADSET, EVNTBIND, EXTRATDQ, INTRATDQ, JVMSERV, LIBRARY, LOCFILE, LOCTRAN, PIPELINE, PROCTYP, PROGRAM, URIMAP	The type of resource to disable.	Yes

Discard resources

Discard installed resources.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMSERV, BUNDLE, CMDT, CONNECT, DB2CONN, DB2ENTRY, DB2TRN, DOCTEMP, EXTRATDQ, INDTDQ, INTRATDQ, IPCONN, JRNLMODL, JRNLNAME, JVMSERV, LIBRARY, LOCFILE, LOCTRAN, MQCON, PIPELINE, PROCTYP, PROGRAM, REMFILE, REMTDQ, TCPIPS, TERMNL, TRANCLAS, TSMODEL, URIMAP, WEBSERV	The type of resource to discard.	Yes

Enable application

Enable an installed cloud enabled CICS application. Requires CICS TS V5.1 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes

Enable resources

Enable installed resources.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMSERV, BUNDLE, CMDT, DB2ENTRY, EPADAPT, EPADSET, EVNTBIND, EXTRATDQ, INTRATDQ, JVMSERV, LIBRARY, LOCFILE, LOCTRAN, PIPELINE, PROCTYP, PROGRAM, URIMAP	The type of resource to enable.	Yes

Install BAS resource descriptions

Install resource descriptions from the CICSPlex SM data repository using BAS.

Name	Type	Description	Required
Resource Description List	String	A comma-separated list of resource description names.	Yes

Install BAS resource groups

Install resource groups from the CICSPlex SM data repository using BAS.

Name	Type	Description	Required
Resource Group List	String	A comma-separated list of resource group names.	Yes

Install BAS resources

Install resource definitions from the CICSPlex SM data repository using BAS.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMDEF, BUNDDEF, DB2CDEF, DB2EDEF, DB2TDEF, DOCDEF, EJCODEF, EJDJDEF, ENQMDEF, FILEDEF, IPCONDEF, JRNMDEF, JVMSVDEF, LIBDEF, LSRDEF, MAPDEF, MQCONDEF, PARTDEF, PIPEDEF, PROCDEF, PROFDEF, PROGDEF, PRTNDEF, RQMDEF, TCPDEF, TDQDEF, TERMDEF, TRANDEF, TRNCLDEF, TSMDEF, TYPTMDEF, URIMPDEF, WEBSVDEF	The type of resource to install.	Yes
Version	String	The version of the resource to install. The default value is 1.	Yes

Install CSD groups or lists

Install resources contained in groups or lists from the CSD.

Name	Type	Description	Required
Group or List	Enumeration:CSDGROUP, CSDLIST	Specify whether to install from a CSD group or list.	Yes
Group or List Name	String	A comma-separated list of CSD groups or lists.	Yes

Install CSD resources

Install resources from the CSD.

Name	Type	Description	Required
Group Name	String	The name of the group that the resource or resources belong to.	Yes
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:ATOMDEF, BUNDDEF, DB2CDEF, DB2EDEF, DB2TDEF, DOCDEF, EJCODEF, EJDJDEF, ENQMDEF, FILEDEF, IPCONDEF, JRNMDEF, JVMSVDEF, LIBDEF, LSRDEF, MAPDEF, MQCONDEF, PARTDEF, PIPEDEF, PROCDEF, PROFDEF, PROGDEF, PRTNDEF, RQMDEF, TCPDEF, TDQDEF, TERMDEF, TRANDEF, TRNCLDEF, TSMDEF, TYPTMDEF, URIMPDEF, WEBSVDEF	The type of resource to install.	Yes

Make application available

Make an installed cloud enabled CICS application available. Requires CICS TS V5.2 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes

Make application unavailable

Make an installed cloud enabled CICS application unavailable. Requires CICS TS V5.2 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is ${p:cics.application.definition.name}.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes

Make resources available

Make installed bundle resources available. Requires CICS TS V5.2 or later.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:BUNDLE	The type of resource to make available.	Yes

Make resources unavailable

Make installed bundle resources unavailable. Requires CICS TS V5.2 or later.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:BUNDLE	The type of resource to make unavailable.	Yes

New copy resources

New copy installed program or doc template resources.

Name	Type	Description	Required
Max Retry Times	String	The maximum number of times to retry a new copy of the resource. A retry occurs when the new copy fails.	No
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:DOCTEMP, PROGRAM	The type of resource to new copy.	Yes
Retry Interval (s)	String	The number of seconds to wait before retrying a new copy of the resource.	No

Open resources

Open installed resources.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:CMDT, EXTRATDQ, LOCFILE, TCPIPS	The type of resource to open.	Yes

Phase in resources

Phase in installed program or bundle resources. Phase in for a bundle resource type requires CICS TS V5.3 or later.

Name	Type	Description	Required
Resource Name List	String	A comma-separated list of resource names.	Yes
Resource Type	Enumeration:BUNDLE, PROGRAM	The type of resource to phase in.	Yes

Scan pipelines

Scan installed pipeline resources.

Name	Type	Description	Required
Pipeline List	String	A comma-separated list of pipelines.	Yes

Undeploy application

Undeploy a cloud enabled CICS application. Requires CICS TS V5.1 or V5.2 with APAR PI56706, or V5.3 or later.

Name	Type	Description	Required
Application Definition	String	The name of the CICS application definition. The default value is {p:cics.application.definition.name}``.	Yes
Application Version	String	The application version in major.minor.micro format (for example, 1.2.345). The default value is ${p:cics.application.version}.	Yes
State	Enumeration:DISABLED, DISCARDED, UNAVAILABLE	The target state of the application.	Yes
Timeout (s)	String	The number of seconds to make retry attempts before a timeout occurs. The valid range is 1-1800. The default value is 300.	No

Undeploy bundles

Undeploy CICS bundles. Requires CICS TS V5.1 or V5.2 with APAR PI56706, or V5.3 or later.

Name	Type	Description	Required
Bundle Name List	String	A comma-separated list of bundle names.	Yes
Group Name	String	When the target state is Discarded, enter the name of the resource definition group in which the bundle is defined.	No
Resource Definition	Enumeration:BAS, CSD, NOT	When target state is Discarded, choose the location of the resource definition to delete. You can also choose to NOT delete the resource definition. The default action is to delete the resource in CSD.	Yes
State	Enumeration:DISABLED, DISCARDED, UNAVAILABLE	The target state of the bundle.	Yes
Timeout (s)	String	The number of seconds to wait for each bundle to undeploy before a timeout occurs. Further processing of a bundle by CICS might occur after the timeout. The valid range is 1-1800. The default value is 300.	No

Output properties

• Overview of output properties
• The cics.response.errors property
• How to view output properties
• Use cics.response.errors in a post-processing script

Overview of output properties

A step in UrbanCode Deploy is able to return output properties. These can be used in the step post-processing script and to pass information between steps. For an example workflow using output properties, see Properties in the UrbanCode Deploy documentation.

The cics.response.errors output property

If the CICS TS plug-in step fails (because CICS returns an error, for example) the step returns the cics.response.errors output property.

This property value consists ofa JSON document of error codes, one set for each resource in the resource list.The following elements are returned to the JSON document:

Element name	Description
action	The action performed by the step.
resourceName	The name of the CICS resource.
resourceType	The type of CICS resource.
responseName	The plain text translation of the response code.
reasonName	The plain text translation of the reason code.
attribute	The name of the attribute that is in error.
errorCode	The CICSPlex SM error code associated with the resource.
resp1Name	The plain text equivalent of the resp value.
resp2	The CICS RESP2 code or the CICSPlex SM API EYUDA reason code as a numeric value.

How to view output properties

You can view a steps output properties in the Log tab of the Process Request window.Next to the desired step name, click on the Input/Output properties icon. In the popup that follows, click View Output Properties.

Image showing the location output properties in the Process Request window The following is a sample of the cics.response.errors output when NEWCOPY fails with a NODATA error:

[{"action":"NEWCOPY","attribute":"","errorCode":"","reasonName":"","resourceName":"NOTEXIST","resourceType":"PROGRAM","resp1Name":"","resp2":"","responseName":"NODATA"}``]

Use cics.response.errors in a post-processing script

You can configure a post-processing script to run after a step finishes. Post-processing scripts can be used to ensure that the expected results occurred, and to pass properties between steps. For more information on using and storing reusable post-processing scripts, see the Post-processing scripts section of the Urban Code Deploy documentation.

The following is a usage example of a post-processing script for the New copy resources step in the CICS TS plug-in:

The New copy resources step instructs CICS to reload the resource the next time it is requested. The step fails in CICS with a NODATA response if the resource was not already installed, however in most cases, this failure can be ignored as CICS will automatically load the resource when it is next used.

The following script analyses the cics.response.errors output property and providing the only errors are NODATA, will change the step to be successful:

var exit = properties.get('exitCode');
commandOut.println("Running the post-processing script.");
if (exit == 0) {
  commandOut.println("The main step passed.");
  properties.put('Status', 'Success');
}
``
else {
  commandOut.println("The main step failed. Analysing its errors...");
  var responseErrors = JSON.parse(properties.get("cics.response.errors"));
  if (responseErrors) {
    if (responseErrors.length > 0) {
      for (var i = 0; i < responseErrors.length; i++) {
        commandOut.println("Analysing result with response name '" + responseErrors[i].responseName + "'.");
        if (responseErrors[i].responseName != "NODATA") {
          commandOut.println("Breaking early.");
          break;
        }
        ``
      }
      ``
      if (responseErrors.length > 0 && i == responseErrors.length) {
        commandOut.println("All errors were NODATA. The step will succeed.");
        properties.put("Status", "Success");
      }
      ``
      else {
        commandOut.println("Not all errors were NODATA. The step will be failed.");
        properties.put("Status", "Failure");
      }
      ``
    }
    ``
    else {
      commandOut.println("No error records found. The step will be failed.");
      properties.put("Status", "Failure");
    }
    ``
  }
  ``
  else {
    commandOut.println("No CICS response errors found!")
  }
  ``
}
``

Defining and deleting resource definitions

Using the z/OS Utility plug-in Submit Job step you can perform the following actions in CICS:

• Run DFHCSDUP to define or delete resource definitions in the CSD.
• Run EYU9XDBT to define or delete resource definitions in the CPSM data repository.

In the following example, DFHCSDUP is run with replace tokens @CICSHLQ@,@CSD@, and @CSDUPDATE@.

Image showing the Submit Job step configured to define some CICS resources Replace tokens allow you to customize values in your JCL templates, in order to use the same JCL in different deployment scenarios.

For example, a token such as @CSD@ can be linked to a matching UrbanCode Deploy property, cics.jcl.csd. This property is then assigned a value, such as CICSTS53.CICS.DFHCSD, which can be set at the environment level, or wherever is most suitable.

For more details on the Submit Job and Wait For Job steps, see the Steps page for the z/OS Utility plug-in.

Default input properties

The following properties are present on all CICS TS plug-in steps. You can view them on any step configuration page by selecting the Show Hidden Properties check box.

These properties are typically environment or component-specific. To reduce manual configuration, you can define properties at an application, environment, or resource level.

For an example of how to set up a CICS installation as an UrbanCode Deploy resource, see the Setting up resources for simple management of properties on the Usage page. More information on usage of properties, see the Properties topic in the UrbanCode Deploy documentation.

Name	Default value	Description
Host	${p:cics.host}	The host name of the CICS region to connect to.
Port	${p:cics.cmciport}	The CMCI port to connect to.
CICSplex	${p?:cics.cicsplex}	The name of the the CICSplex (defined set of CICS Systems) to connect to.
Scope	${p?:cics.scope}	The name of the Scope to connect to. The scope can be a CICSplex, a CICS system, a CICS system group, or any set of CICS resources that are defined as a logical scope.
Username	${p?:cics.username}	The username for connecting to CICS.
Password	${p?:cics.password}	The password for connecting to CICS.
Enable SSL	${p?:cics.ssl}	Whether to enable SSL connection to CICS. When set to true, this enables SSL connection to CICS. By default, SSL is disabled.
Keystore Location	${p?:cics.kslocation}	The location of the keystore that is used to provide credentials for client-certificate authentication, if SSL is enabled.
Keystore Type	${p?:cics.kstype}	The type of the keystore that provides credentials for client-certificate authentication, if SSL is enabled. If unspecified, the agents default Java keystore type is used. For keys contained in RACF keyrings, use JCERACFKS when the keys are stored in software, or JCECCARACFKS when the keys are stored in hardware with ICSF.
Keystore Password	${p?:cics.kspassword}	The password of the keystore that provides credentials for client-certificate authentication, if SSL is enabled. For keys contained in RACF keyrings, leave this value empty.
Truststore Location	${p?:cics.tslocation}	The location of the truststore that verifies credentials, if SSL is enabled.
Truststore Type	${p?:cics.tstype}	The type of the truststore that verifies credentials, if SSL is enabled. If unspecified, uses the agents default Java keystore type. For certificates contained in RACF keyrings, use JCERACFKS when the certificates are stored in software, or JCECCARACFKS when the certificates are stored in hardware with ICSF.
Truststore Password	${p?:cics.tspassword}	The password of the truststore that verifies credentials, if SSL is enabled. For certificates contained in RACF keyrings, leave this value empty.

-For files in zFS, use a hierarchical file path such as

/u/myuser/keystore.jks

or

file:///u/myuser/keystore.jks

-For keys contained in RACF keyrings that are stored in software, use a URL in the format

safkeyring:///<keyring name>

-For keys contained in RACF keyrings that are stored in hardware with ICSF, use

safkeyringhw:///<keyring name>

-For files in zFS, use a hierarchical file path such as

/u/myuser/truststore.jks

or

file:///u/myuser/truststore.jks

-For certificates contained in RACF keyrings that are stored in software, use a URL in the format

safkeyring:///<keyring name>

-For certificates contained in RACF keyrings that are stored in hardware with ICSF, use

safkeyringhw:///<keyring name>

Back to …		Latest Version	CICS TS
All Plugins	Deploy Plugins	44.20231019-2202	Readme	Overview	Usage	Component Templates	Troubleshooting	Downloads
