GitHub Copilot Documentation

Overview

The GitHub Copilot Metrics integration enables customers to automatically collect and analyze Copilot usage insights for their organization. This feature retrieves user activity, engagement levels, language-specific completions, and other Copilot adoption metrics directly from the GitHub API and syncs them into Velocity.

This helps organizations track how developers are using AI-assisted coding and measure productivity impact through structured metrics.

Configuration Structure

The GitHub Copilot Metrics integration fetches structured JSON data from the Copilot Metrics API and extracts multiple metric categories. Velocity processes the API response and converts it into five different metric datasets:

User Adoption Metrics

These fields come directly from the API response:

Field	Description
date	The date of the metric record
Active	Users who interacted with Copilot
Engaged	Users who accepted or modified Copilot suggestions

dataset: GenAI User Adoption

Line Acceptance Metrics

These fields come directly from the API response:

Field	Description
date	The date of the metric record
suggested	Total lines Copilot suggested across all editors/languages
Accepted	Total lines accepted by the user

dataset: GenAI Line Acceptance

Code Acceptance Metrics (Suggestion Acceptance)

These fields come directly from the API response:

Field	Description
date	The date of the metric record
suggestions	Number of code suggestions generated by Copilot
acceptances	Number of suggestions accepted

dataset: GenAI Code Acceptance

Chat Events Metrics

These fields come directly from the API response:

Field	Description
date	The date of the metric record
Total Chats	Total chat prompts created by users
Chat Insertion Events	Chat-to-code insertion actions
Chat Copy Events	Chat response copy events

dataset: GenAI Chat Events

Pull Request Summary Metrics

These fields come directly from the API response:

Field	Description
date	The date of the metric record
pr_summaries_created	Number of PR summaries generated by Copilot

dataset: GenAI PR Events

Example Copilot Metric Record

{
  "date": "2025-06-11",
  "total_active_users": 40,
  "total_engaged_users": 20,
  "copilot_ide_code_completions": {
    "total_engaged_users": 20,
    "languages": [
      { "name": "python", "total_engaged_users": 10 },
      { "name": "ruby", "total_engaged_users": 5 },
      { "name": "javascript", "total_engaged_users": 5 }
    ]
  }
}

Explanation:

• date: Metric aggregated per day

• total_active_users: Anyone who used Copilot

• total_engaged_users: Anyone who engaged with Copilot suggestions

• languages: Breakdown of engaged users per programming language

Velocity collects and stores this data for reporting and trend analysis.

Pre-requisites

To use the GitHub Copilot Metrics integration, the following requirements must be met:

GitHub Organization Administrator Access

You must have organization-level admin access to enable and configure Copilot API usage.

Copilot API Access Approval

Your organization must request and obtain Copilot API access from GitHub. Without this approval, Copilot metrics cannot be collected.

Required Tokens

Personal Access Tokens must include Copilot Admin permissions. Tokens without these scopes will fail.

IT / Security Team Approval

Copilot Admin API permissions typically require approval from your IT or Security teams.

Authentication Requirements

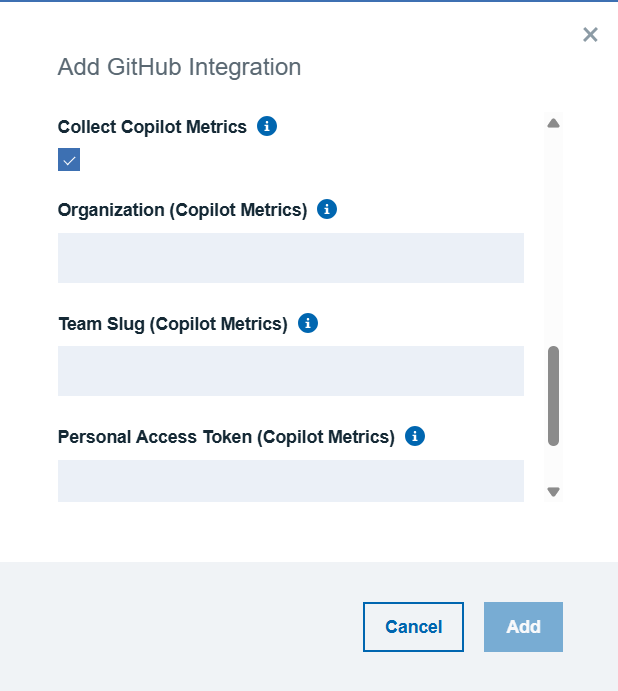

Enable Collect Copilot Metrics to collect Copilot metrics

Once Enabled, you need to fill the following details

• Organization Name
• Team Slug
• Personal Access Token ( Copilot)

The following Copilot metrics can be added and displayed within the Velocity insights section.

• GenAI Line Acceptance
• GenAI User Adoption
• GenAI Chat Events
• GenAI Code Acceptance
• GenAI PR Events

NOTE: This feature is provided as a Tech Preview. Organizations intending to enable it must obtain GitHub Copilot API access approvals and generate tokens with the required Copilot permissions. Without these approvals and the appropriate tokens, Copilot metrics cannot be collected.
