Plan - Usage

To use the Plan plug-in, the plug-in must be loaded and an instance created before you can configure the plug-in integration. You define configuration properties in the user interface or in a JSON file.

Integration type

The Plan plug-in supports scheduled events integration which are listed in the following table.

Name	Description
syncCompassIssueEvent	Query the DevOps Plan server for issues in a project.

Integration

There are two methods to integrate the plug-in:

Using the user interface
Using a JSON file

The tables in the Configuration properties topic describe the properties used to define the integration.

Using the user interface

From the Plugins page, click Settings > Integrations > Plugins.
Under the Action column for the plug-in, click Add Integration.
On the Add Integration page enter values for the fields used to configure the integration and define communication.
Click Save.

Using a JSON file

The JSON file contains the information for creating a value stream. Within the JSON file is a section for integrations. It is in this section that plug-in properties can be defined.

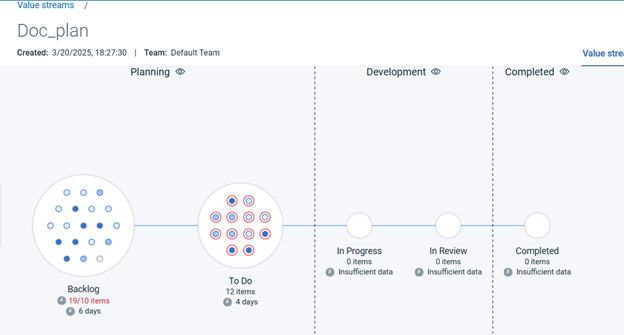

From a value stream page, download the value stream map. The value stream map is a JSON file used to define integrations.
Edit the JSON file to include the plug-in configuration properties.
Save and upload the JSON file. This replaces the current JSON file with the new content.
View the new integration on the Integrations page.

Configuration properties

The following tables describe the properties used to configure the integration. Each table contains the field name when using the user interface and the property name when using a JSON file.

The General Configuration Properties table describes configuration properties used by all plug-in integrations.
The Plan Configuration Properties table describes the configuration properties that define the connection and communications with the Plan server. When using the JSON method to integrate the plug-in these properties are coded within the properties configuration property.

General Configuration table

Name	Description	Required
image	The version of the plug-in that you want to use. To view available versions, see the UrbanCode DockerHub. If a value is not specified, the latest version is used.	No
name	An assigned name to the value stream.	Yes
loggingLevel	The level of Log4j messages to log. Valid values are: all, debug, info, warn, error, fatal, off, and trace. The default is info.	No
properties	List of plug-in configuration properties used to connect and communicate with the Plan server. Enclose the properties within braces.	Yes
tenant_id	The name of the tenant.	Yes
type	Unique identifier assigned to the plug-in. The value for the Plan plug-in is `ucv-ext-compass`	Yes

Plan Configuration Properties table

Name	Type	Description	Required	Property Name
DevOps Velocity User Access Key	Secure	The user access key to authenticate with the DevOps Velocity server. This property is not available starting with version 1.0.18 of the plugin.	Yes	ucvAccessKey
URL	String	The URL and port of the DevOps Plan server.	Yes	serverUrl
Username	String	The user name to authenticate with the DevOps Plan server.	Yes	userName
Password	Secure	The password to authenticate with the DevOps Plan server.	No	password
Repo	String	The repository name of the DevOps Plan project.	Yes	repo
Database	String	The name of the DevOps Plan database from where the data to be pulled.	Yes	db
Custom Field Mapping	Multiline	Map DevOps Plan fields to Velocity as a JSON Object.	Yes	fieldMapping
DevOps Plan Server Timezone	Dropdown	The time zone offset from the Coordinated Universal Time (UTC).	Yes	timezone
Import issues or work items from a specified number of months	String	Issues or work items are imported for the specified number of months when the plugin runs for the first time.	No	since

Custom mapping field properties

Custom mapping fields are not required because mappings can be derived from the DevOps Plan JSON data. However, when specifying custom mapping fields, they must be provided through the DevOps Plan configuration or the DevOps Velocity Create Integration form. The Create Integration form takes precedence.

Property Name	Description
type	The type of work item. For example: Defect.
name	The name or headline in DevOps Plan.
creator	The creator of the work item. For example: submitter or created by field in HCL DevOps Plan.
owner	The owner of the work item. This can be the Owner field in HCL DevOps Plan.
priority	The priority of the work item. This can be the Priority or Hierarchy field in HCL DevOps Plan.
description	The description or headline in HCL DevOps Plan.
children	This field is applicable for work items of type Feature only. This field can be used to specify the Stories under the Feature.
parent	This field is applicable for work items of type Story only. This field can be used to specify the Feature for the Story.

Example

The following example can be used as a template to include the Plan plug-in integration into the JSON file. Copy and paste the template into the JSON file and make the appropriate changes.

Example Integration for type Defect

"integrations": [
  {
    "type": "ucv-ext-compass",
    "tenant_id": "<Tenant Id>",
    "name": "<Integration-Name>",
    "disabled": false,
    "properties": {
      "ucvAccessKey": "<User Access Key>",
      "serverUrl": "<server-url>",
      "userName": "<username>",
      "password": "<password>",
      "repo": "<repo>",
      "db": "<db>",
      "fieldMapping": "[{\"type\": \"Defect\", \"fieldMapping\": {\"name\": \"Owner\", \"creator\": \"Submitter\", \"owner\": \"Owner\", \"priority\": \"Priority\", \"description\": \"Description\"}}]",
      "timezone": "<timezone>"
      "since": "<since>"
    }
  }
]

Example Integration for type Feature

"integrations": [
  {
    "type": "ucv-ext-compass",
    "tenant_id": "<Tenant Id>",
    "name": "<Integration-Name>",
    "disabled": false,
    "properties": {
      "ucvAccessKey": "<User Access Key>",
      "serverUrl": "<server-url>",
      "userName": "<username>",
      "password": "<password>",
      "repo": "<repo>",
      "db": "<db>",
      "fieldMapping": "[{\"type\": \"Feature\", \"fieldMapping\": {\"name\": \"Owner\", \"creator\": \"Submitter\", \"owner\": \"Owner\", \"priority\": \"Priority\", \"description\": \"Description\", \"children\": \"Stories\"}}]",
      "timezone": "<timezone>"
      "since": "<since>"
    }
  }
]

Example Integration for type Story

"integrations": [
  {
    "type": "ucv-ext-compass",
    "tenant_id": "<Tenant Id>",
    "name": "<Integration-Name>",
    "disabled": false,
    "properties": {
      "ucvAccessKey": "<User Access Key>",
      "serverUrl": "<server-url>",
      "userName": "<username>",
      "password": "<password>",
      "repo": "<repo>",
      "db": "<db>",
      "fieldMapping": "[{\"type\": \"Story\", \"fieldMapping\": {\"name\": \"Owner\", \"creator\": \"Submitter\", \"owner\": \"Owner\", \"priority\": \"Priority\", \"description\": \"Description\", \"parent\": \"Feature\"}}]",
      "timezone": "<timezone>"
      "since": "<since>"
    }
  }
]
