DevOps Control - Usage

To use the DevOps Control plug-in, the plug-in must be loaded, and an instance created before you can configure the plug-in integration. You define configuration properties in the user interface or in a JSON file.

Integration type

The DevOps Control plug-in supports scheduled events integration which are listed in the following table.

Name	Description	Synchronization Interval
syncControlPullRequestsEvent	Queries the DevOps Control repository for pull requests.	5 Minutes
syncControlCommitsEvent	Queries the DevOps Control repository for commits.	5 Minutes

Integration

To install the plug-in, perform the following steps:

1. In IBM DevOps Velocity, click Settings > Integrations > Available.
2. In the Action column for the DevOps Control plug-in, click Install.

There are two methods to integrate the plug-in:

1. Using the user interface
2. Using a JSON file

The tables in the Configuration Properties section describe the properties used to define the integration.

Integrating the plug-in by using user interface

The tables in the Configuration properties topic describe the properties used to define the integration.

To integrate the plug-in using the user interface, perform the following steps:

1. In IBM DevOps Velocity, click Settings > Integrations > Installed.
2. In the Action column for the DevOps Control plug-in, click Add Integration
3. On the Add Integration dialog, enter the values for the fields to configure the integration and define communication.
4. Click Add.

Integrating the plug-in by using JSON file

The JSON file contains the information for creating a value stream. Within the JSON file is a section for integrations. It is in this section that plugin properties can be defined. Refer to the JSON sample code in the Configuration Properties section.

To integrate the plug-in using a JSON, perform the following steps:

1. Navigate to value stream page, and then click the necessary value stream.
2. Click wrench icon, and then Select Edit value stream to modify the JSON file in the code or tree view editors. Alternatively, you can also click Download JSON option to download the JSON file, and then select the Import JSON option to upload the revised JSON file.
3. Edit the integration information in the JSON file to add the plug-in configuration properties. Refer to JSON sample code in the Configuration Properties for more details.
4. Click Save.

Minimum permission to integrate with DevOps Control

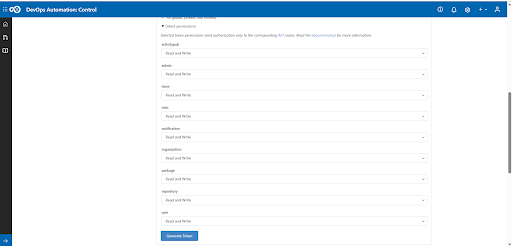

The access token generated from DevOps Control server requires the full control of repositories permission to connect to the Control.

Configuration properties

The following tables describe the properties used to configure the integration. Each table contains the field name when using the user interface and the property name when using a JSON file.

• The General Configuration Properties table describes configuration properties used by all plug-in integrations.
• The DevOps Control Configuration Properties table describes the DevOps Control configuration properties that define the connection and communications with the DevOps Control server.

Some properties might not be displayed in the user interface, to see all properties enable the Show Hidden Properties field.

General Configuration Properties table

Name	Description	Required	Property Name
NA	The version of the plug-in that you want to use. To view available versions, click the Version History tab. If a value is not specified, the latest version is used.	No	image
Integration Name	An assigned name to the value stream.	Yes	name
Logging Level	The level of Log4j messages to display in the log file. Valid values are all, debug, info, warn, error, fatal, off, and trace.	No	loggingLevel
NA	List of configuration properties used to connect and communicate with the DevOps Control server. Enclose the properties within braces.	Yes	properties
NA	The name of the tenant.	Yes	tenant_id
NA	Unique identifier assigned to the plug-in. The value for the DevOps Control plug-in is ucv-ext-control.	Yes	type
DevOps Velocity User Access Key	An auto-generated user access key provides credentials for communicating with the IBM DevOps Velocity server.	Yes	NA

DevOps Control Configuration Properties table

Name	Type	Description	Required	Project Name
API URL	String	The URL for the REST API v3 of the DevOps Control application instance (add /api/v1 at the end of base url).	Yes	apiUrl
Organization	String	The organization name of the DevOps Control repository.	Yes	organization
Repositories	Array	List of DevOps Control Repository names (separated by comma). Regular expression is enabled (Example: ucv-ext-, repo-name, repo-abc)	Yes	repositories
Branch	String	DevOps Control repositories branch, the branch to pull commits from.	No	branch
Personal access token	Secure	The token to use to authenticate with the DevOps Control repository.	Yes	token
Additional branches	Array	List of Branches (separated by comma) to collect commits from besides the main one. Leave blank if not needed	No	otherBranches
Proxy Server	String	The URL of the proxy server including the port number.	No	proxyServer
Proxy User Name	String	The username used to authenticate with the proxy server.	No	proxyUsername
Proxy Password	String	The password used to authenticate with the proxy server.	No	proxyPassword
User Access Key	Secure	User access key for authentication with this server	No	ucvAccessKey

JSON code example

The following sample code can be used as a template to define the integration within the JSON file for a value stream. Copy and paste the template into the JSON file Integration section and make the appropriate changes.

"integrations":[ {
    "type":"ucv-ext-control",
    "tenant_id":"tenant-id",
    "name":"control-integration-name",
    "properties":{
        "organization":"organization",
        "repositories":[
            "repo1",
            "repo2",
            "repo3"
        ],
        "apiUrl":"control-api-url",
        "token":"generated-token",
        "ucvAccessKey":"generated-access-key",
        "proxyServer": "*proxy_server_url*",
        "proxyUsername": "*proxy_server_user_name*",
        "proxyPassword": "*proxy_server_password*"
    }
} ]
